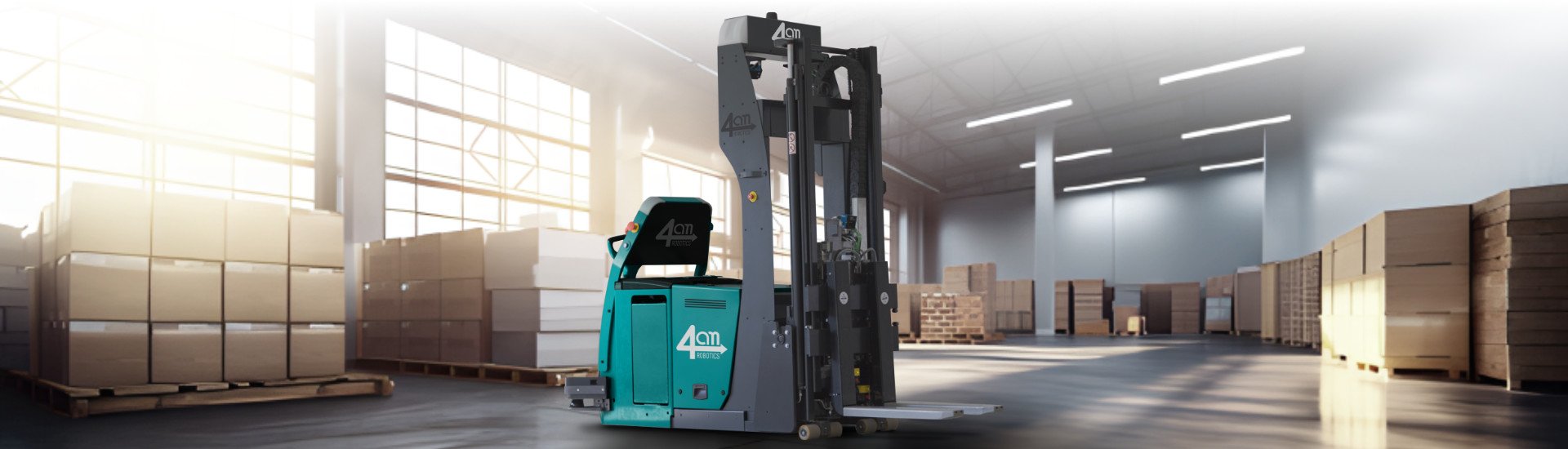

Project at an automotive OEM using our AFi-M (autonomous forklift).

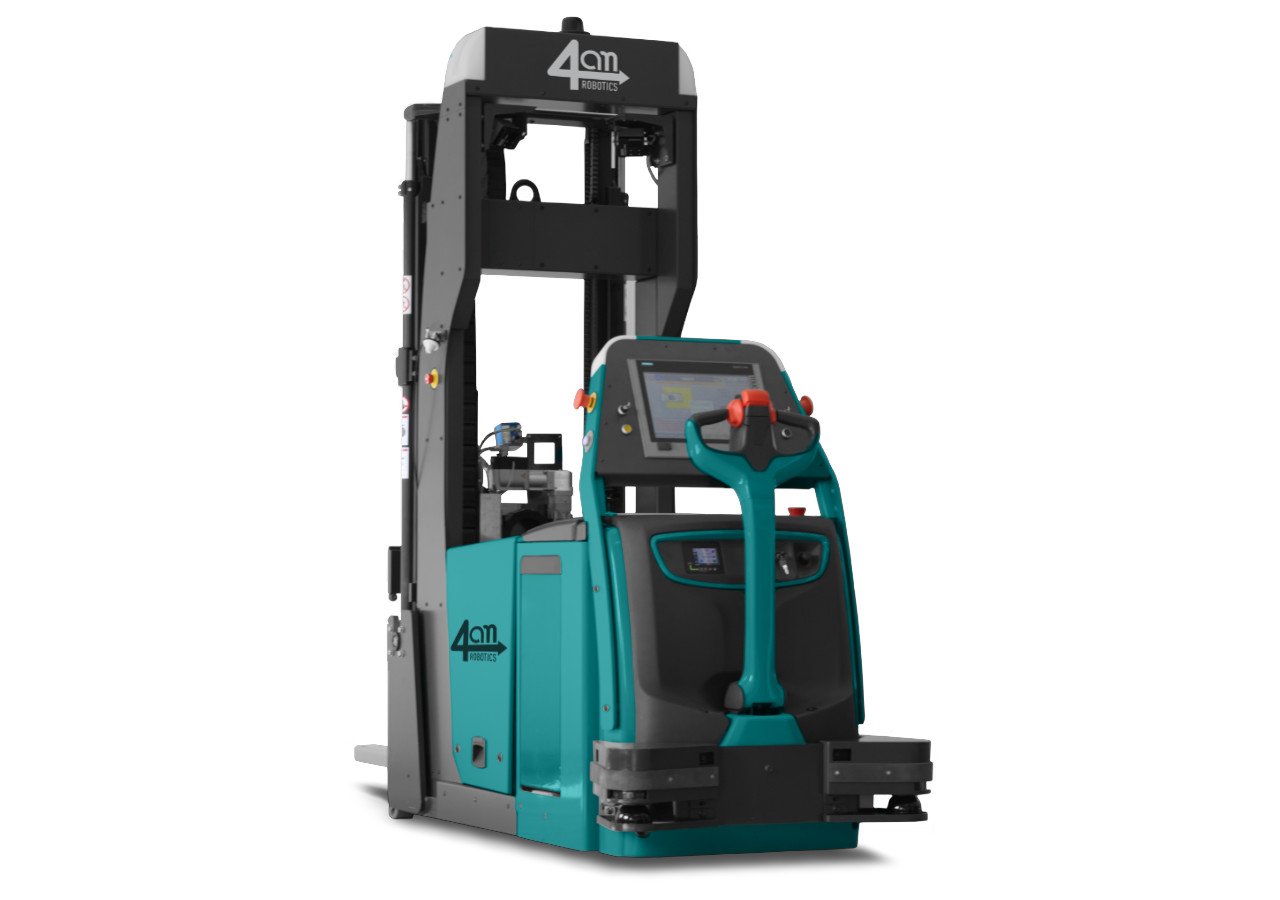

AFi-M
Autonomous Forklift Indoor Medium
Connects all dimensions in your material flow!
The autonomous forklift - the ideal solution for material handling on multiple levels!
Technical data:
- Base unit: Linde L16AC
- Dimension (LxBxH): 3172x1000x1515mm
- Payload at 500mm LSP: 1450kg
- Payload at 600mm LSP: 1150kg
- Max. lifting height: 2600mm
- Max. speed: 2,2 m/s (8 km/h)
Automationkit
Automation system | SIEMENS PLC / ROS |
HMI | SIEMENS IPC Touch Panel |
Type of navigation | SLAM |
Positioning precision | +/- 20 mm |
Safety technology | 2D liDAR Safety Scanner |
Safety level | Performance Level d |
Complies with safety standard | DIN EN ISO 3691-4 |
3D-Camera | Optional |
Barcode scanner | Optional |
Wiegezinken | Optional |
Seitenschieber | Optional |
Smart devices connection | Optional |
Energy source
Type of battery | Lithium-ion / lead-acid / fuel cell |
Charging process | Automatic charging / Manual change |
Communication
VDA5050 | Compatible |
Connection | WiFi, 4G/5G |
