    Modularity for flexible material flow design

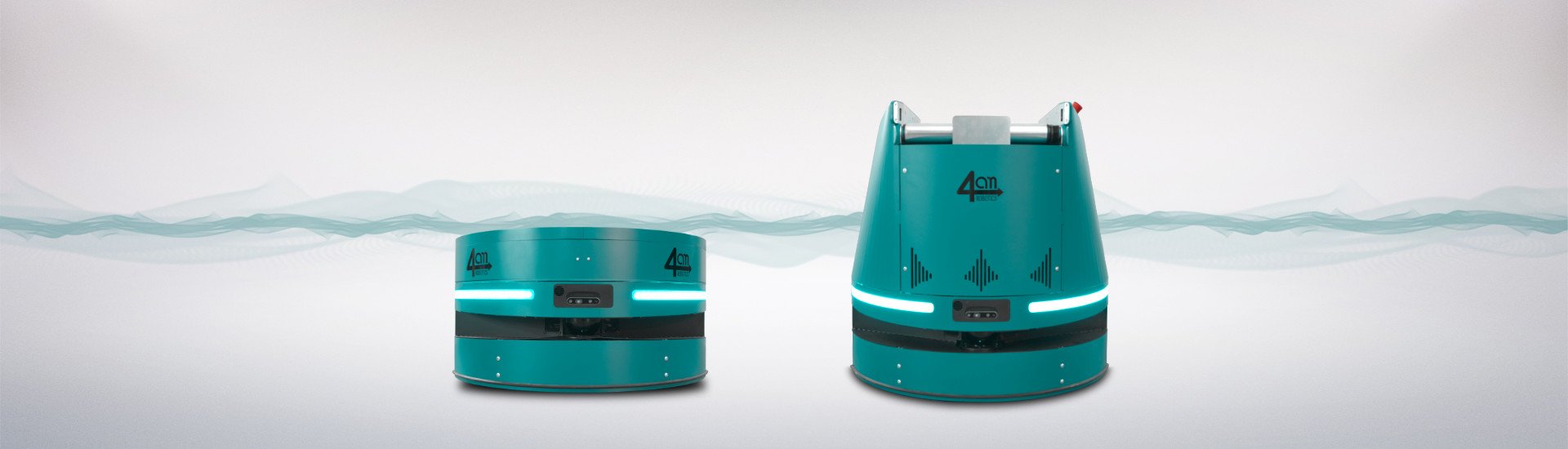

    API-L AUTONOMOUS PLATFORM INDOOR LIGHT

    The mobile platform has a differential drive technology with 4 omnidirectional support wheels.

    It is designed to be cost effective with standard components, combine a minimal footprint and a maximum payload. The base has two 360° safety scanners with variable, adjustable safety fields that permanently scan the surroundings depending on the speed of the platform.

    For collision avoidance and machine protection, 2 additional 2D/3D cameras monitor the surroundings. For data protection reasons, the images are not stored. The control concept is based on a Siemens safety PLC that safely integrates all sensors.

    In addition to the proven collision avoidance, the platform offers as an option a tripping hazard protection for laboratory and hospital environments or elderly people care facilities.

    Additional 360° mechanical buffers with proximity switches between chassis and floor ensure safe human-machine interaction.
    The platform can be equipped with a unique patented 3 axis torso joint that increases the working envelope in both horizontal reach and height, realising the full potential of a mobile, heavy-duty, purpose-built modular platform.

    Technical data:

    • Dimension: ⌀ 800 mm
    • Max. speed: 2,2 m/s
    • Max. payload: 170 kg
    • Max. trailing load: 500 kg
    Automation
    Structure
    Trailer specification
    Energy source
    Communication
    Certifications
    4am-robotics-products-APi-L-autonomous-platform-indoor-light

    API-L

    4am-robotics-products-APi-L-autonomous-platform-indoor-roller-conveyor

    API-L Roller Conveyor

    4am-robotics-products-APi-L-autonomous-platform-indoor-paternoster

    API-L Paternoster
