AMC-T - Autonomous Mobile Cobot Tugger | 4am Robotics

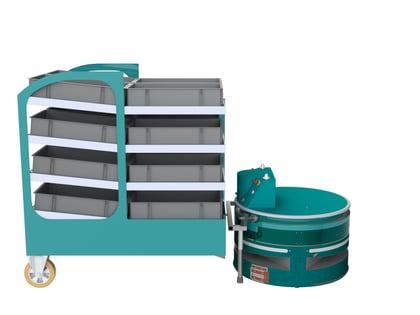

AMC-T-side

High tractive force

Transports loads of up to 500 kg in individual trailers

This powerful machine uses state-of-the-art SLAM technology to ensure autonomous and adaptive navigation. In combination with safety laser scanners, 3D cameras and continuous real-time mapping, it moves safely through even complex environments and adapts dynamically to changes.

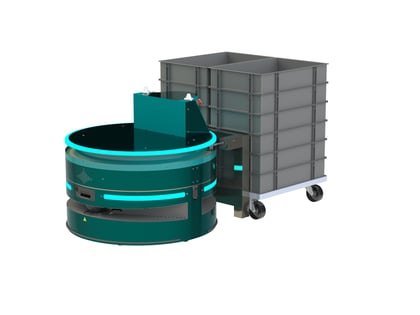

AMC-T-lift-truck-iso

Strong reach

Long battery life for maximum use

The AMC-T is equipped with a powerful lithium-ion battery that enables a battery life of up to 8 hours. With a charging time of just 1 hour, the AMC-T is quickly ready for use again and ideal for continuous operation in demanding environments.

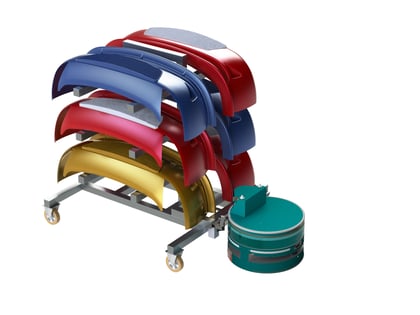

AMC-T-bumpers-iso

Individual adjustments

Customized setup for your specific requirements

The construction of the AMC-T trailer can be flexibly adapted to the specific requirements of your production. Whether special dimensions or special structures - the AMC-T offers numerous adaptation options to optimize integration into existing processes.

With its performance features, this innovative mobile cobot sets new standards in terms of its reach and pulling load. Designed specifically for pulling individual trailers, the AMC-T offers a platform that can navigate autonomously in any direction thanks to the SLAM process and handles its transportation tasks, even in challenging environments.

The AMC-T enables the complete automation of transportation processes without the need for complex infrastructure changes. Its precise navigation and safety systems ensure safe and efficient end-to-end process chaining in the operation.

In conjunction with 2D safety laser scanners, 3D cameras, emergency stop bumpers and crash sensors, the AMC-T is able to navigate autonomously even in complex environments. It constantly updates the map of its surroundings and simultaneously localizes itself within it in order to carry out precise movements. The integrated geomarker on the trailer can be used to localize it and track the trailer angle.

Integration into any master control system for order coordination not only optimizes the material flow, but also enables flexible and needs-based adaptation to different processes. The high round-the-clock availability of the AMC-T, supported by fast charging cycles and the ability to operate in low-light environments, offers a powerful alternative in times of a shortage of skilled workers.

Pull Weight: 500 kg
Battery life: ca. 8 h
Vmax 2,2 m/s
Trailer: Max. 600 mm width / 1.000 mm roller distance from the base
Positioning precision: +/- 10 mm
WiFi, 5G, VDA5050

SLAM technology for autonomous navigation

By using the SLAM process (Simultaneous Localization and Mapping) in conjunction with safety laser scanners, 3D cameras, emergency stop bumpers and crash sensors, the AMC-T navigates safely even in complex environments. It constantly updates the map of its surroundings and simultaneously localizes itself within it in order to carry out precise movements. And it does this without additional markers and without prior adjustments.

High availability and use in low-light environments

The round-the-clock availability of the AMC-T, supported by fast charging cycles and the ability to operate in low-light environments, offers a powerful alternative in times of skills shortages.

Proven safety

We attach great importance to safety and subject our products to all standard safety tests. The AMC-T meets performance level d, which means that it guarantees a high level of safety and therefore reliability during navigation and operation. This is particularly important in order to minimize potentially dangerous situations and ensure a smooth and reliable workflow.
